Dynamic Shaft Sealing

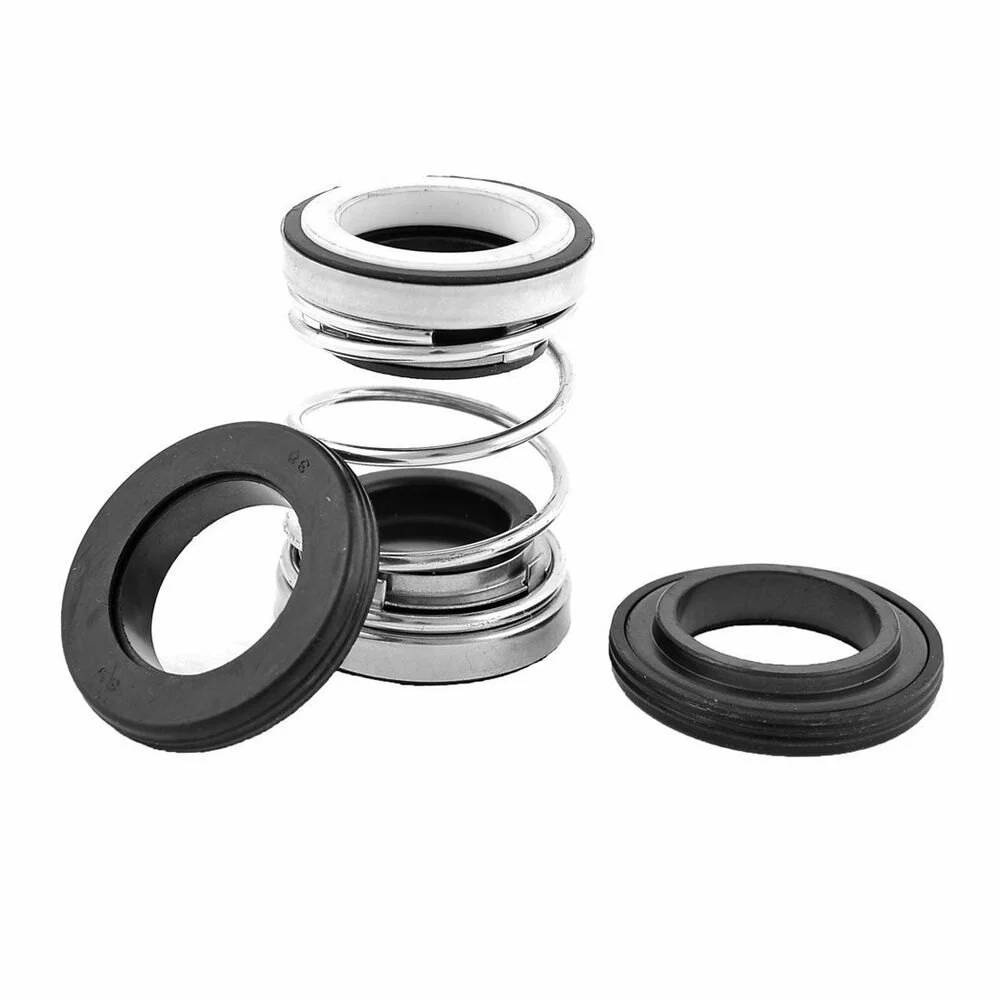

Mechanical Shaft Seal

Mechanical Shaft Seal ⚡ Low Friction Contact

Technical Data

  • Face Materials: SiC / Carbon / TC
  • Elastomers: Viton / Nitrile / EPDM
  • Spring Systems: Single / Multi Spring
  • Operating Pressure: Up to 25 bar
  • Temp. Limits: -30°C to 200°C
  • Speed Rating: Up to 20 m/s

Precision Rotating Shaft Barriers

Mechanical shaft seals are high-integrity devices designed to prevent fluid leakage along rotating shafts of centrifugal pumps, compressors, industrial mixers, and agitators. By substituting conventional compression soft packing with two precision-lapped sliding faces, mechanical shaft seals ensure maximum containment of hazardous, volatile, or high-value fluids.

Micro Engineering manufactures custom-machined mechanical shaft seals optimized to handle severe friction and speed variables. Utilizing advanced elastomer and face combinations, our seals adapt smoothly to shaft runout and thermal growth, reducing maintenance intervals across industrial systems.

Widely installed inside clean water distribution systems, slurry transport networks, paint mixers, and steam blower shafts.

Features & Benefits

Providing total reliability in dynamic rotating setups.

Zero Environmental Emissions

Precision lapped seal faces seal dynamic zones tight, completely blocking leaks of toxic chemicals and hydrocarbon vapors into pump bays.

Lower Power Consumption

Unlike compression gland packings that clamp tight on shafts, mechanical faces slide with minimal friction torque, saving electrical power.

Shaft Wear Prevention

Dynamic friction stays confined inside the modular seal components. Pump shafts remain completely isolated, preventing shaft scoring and fretting.

High Speed & Temp Limits

Advanced face spring loads maintain steady contact at speeds up to 20 m/s, coping with minor shaft deflections and heat spikes.

Engineering & Performance Factors

Comparing Mechanical Shaft Seals with Soft Gland Packing.

Parameters Mechanical Shaft Seals Soft Gland Packing
Sealing Interface Two lapped sliding faces (radial plane). Braided packing yarn compressed on shaft surface (axial).
Drip Leakage Rate Virtually zero leakage (vapor escape). Continuous drip required (lubricates packing).
Friction & Power Loss Low (extremely small friction footprint). High (tight yarn packing causes high motor drag).
Shaft Sleeve Wear None (seal sleeve absorbs wear). High (grit inside packing scores pump shafts).
Maintenance & Care Zero adjustment (runs until face exhaustion). Frequent gland tightening and repacking routines.
Fluid Suitability Toxic, corrosive, high-pressure, or flammable process fluids. Low-pressure water, cooling tower drainage, sumps.

Typical Applications

Wide sealing adaptability across standard fluid transportation lines.

01

Centrifugal Water Pumps

Installed as primary shaft barriers inside municipal water circulation systems and cooling towers.

02

Industrial Mixers & Agitators

Keeps pressure boundary sealed under dynamic shaft deflection and runout variables.

03

Rotary Gas Compressors

Maintains system pressure on high-speed blowers, preventing process gas leaks.

04

Chemical Transfer Loops

Protects operators when pumping acids, volatile solvents, organic bases, and gasoline fuel.

Why Choose Our Shaft Seals?

Micro Engineering supplies premium mechanical shaft seals, ensuring complete containment of industrial liquids under variable pressures.

✓

Helium Lapped Flatness

Our seal faces undergo strict optical lapping checks, maintaining flat surfaces down to 1-2 light bands.

✓

Tailored Material Selection

Available in custom face configurations (Reaction SiC, Sintered SiC, Tungsten Carbide, and high-purity Carbon).

✓

100% Tested Performance

Every dynamic shaft seal is statically and dynamically hydro-tested to ensure total leak-free operation prior to shipping.

✓

Precision Shaft Sleeves

Custom internal sleeves machined on advanced CNC equipment for precise tolerances and perfect key matches.
